Radius Quick Click Nozzle

Features

The Radius Jet Pack Nozzle Storage System allows for two extra nozzles for when water availability or water application needs increase or decrease as the crop matures
Jet Pack Nozzle Holder allows you to match drop water requirements throughout the growing season

Code	Description
RSJPACK	Radius Jet Pack

Limited in supply. Sold only in box quantities

NOZZLE #	#9	#10	#11	#12	#13	#14	#15	#16	#17	#18	#19
COLOR	Light Blue	Beige	Beige	Gold	Gold	Lime	Lime	Lavender	Lavender	Gray	Gray

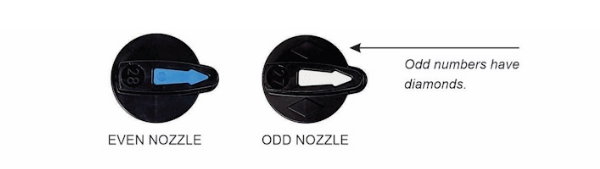

DIAMOND
PSI BAR	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM
6 0.4	0.34 1.28	0.42 1.59	0.50 1.89	0.61 2.30	0.71 2.68	0.82 3.10	0.95 3.59	1.08 4.08	1.22 4.61	1.36 5.14	1.53 5.79
10 0.7	0.44 1.66	0.54 2.04	0.65 2.46	0.79 2.99	10.92 3.48	1.06 4.01	1.23 4.65	1.40 5.29	1.58 5.98	1.75 6.62	1.97 7.45
15 1.0	0.53 2.00	0.66 2.50	0.79 2.99	0.96 3.63	1.13 4.27	1.29 4.88	1.51 5.71	1.71 6.47	1.93 7.30	2.14 8.09	2.41 9.12
20 1.4	0.62 2.34	0.76 2.87	0.92 3.48	1.11 4.20	1.30 4.92	1.49 5.63	1.74 6.58	1.98 7.49	2.23 8.44	2.48 9.38	2.79 10.56
25 1.7	0.69 2.61	0.85 3.22	1.02 3.86	1.24 4.69	1.46 5.52	1.67 6.32	1.95 7.38	2.21 8.36	2.50 9.46	2.77 10.48	3.12 11.81
30 2.1	0.76 2.87	0.93 3.52	1.12 4.23	1.36 5.14	1.59 6.01	1.83 6.92	2.14 8.09	2.42 9.15	2.74 10.37	3.03 11.46	3.41 12.90
40 2.8	0.87 3.29	1.07 4.05	1.29 4.88	1.57 5.94	1.84 6.96	2.11 7.98	2.47 9.34	2.80 10.59	3.16 11.96	3.50 13.24	3.94 14.91
50 3.4	0.97 3.67	1.20 4.54	1.45 5.48	1.76 6.66	2.06 7.79	2.36 8.93	2.76 10.44	3.13 11.84	3.53 13.32	3.91 14.79	4.41 16.69

NOZZLE #	#20	#21	#22	#23	#24	#25	#26	#27	#28	#29	#30
COLOR	Turquoise	Turquoise	Yellow	Yellow	Red	Red	White	White	Blue	Blue	Dark Brown
DIAMOND
PSI BAR	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM
6 0.4	1.70 6.43	1.84 6.96	2.04 7.72	2.22 8.40	2.44 9.23	2.64 9.99	2.87 10.86	3.07 11.61	3.35 12.68	3.58 13.55	3.83 14.49
10 0.7	2.19 8.28	2.38 9.00	2.64 9.99	2.86 10.82	3.16 11.96	3.41 12.90	3.70 14.00	3.97 15.00	4.32 16.35	4.62 17.48	4.94 18.69
15 1.0	2.69 10.18	2.91 11.01	3.23 12.22	3.50 13.24	3.86 14.61	4.17 15.78	4.53 17.14	4.86 18.39	5.29 20.02	5.66 21.42	6.06 22.93
20 1.4	3.10 11.73	3.36 12.71	3.73 14.11	4.05 15.32	4.46 16.88	4.82 18.24	5.23 19.79	5.61 21.23	6.11 23.12	6.53 24.71	6.99 26.45
25 1.7	3.47 13.13	3.76 14.23	4.17 15.78	4.52 17.10	4.99 18.88	5.38 20.36	5.85 22.14	6.27 23.73	6.83 25.85	7.30 27.63	7.82 29.59
30 2.1	3.80 14.38	4.12 15.59	4.56 17.25	4.96 18.77	5.47 20.70	5.90 22.33	6.41 24.26	6.87 26.00	7.48 28.31	8.00 30.28	8.56 32.39
40 2.8	4.39 16.16	4.76 18.01	5.27 19.94	5.72 21.65	6.31 23.88	6.81 25.77	7.40 28.00	7.94 30.65	8.64 32.70	9.24 34.97	9.89 37.43
50 3.4	4.90 18.54	5.32 20.13	5.89 22.29	6.40 24.22	7.06 26.72	7.61 28.80	8.28 31.33	8.87 33.57	9.66 36.56	10.33 39.13	11.06 41.86

NOZZLE #	#31	#32	#33	#34	#35	#36	#37	#38	#39	#40	#41
COLOR	Dark Brown	Orange	Orange	Dark Green	Dark Green	Purple	Purple	Black	Black	Dark Turquoise	Dark Turquoise
DIAMOND
PSI BAR	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM
6 0.4	4.06 15.36	4.36 16.50	4.65 17.60	4.94 18.69	5.20 19.68	5.47 20.07	5.84 22.10	6.18 23.39	6.52 24.68	6.85 25.92	7.26 27.48
10 0.7	5.24 19.83	5.63 21.50	6.00 22.71	6.37 24.11	6.72 25.43	7.06 26.72	7.54 28.54	7.97 30.16	8.42 31.87	8.85 33.49	9.37 35.47
15 1.0	6.41 24.26	6.89 26.07	7.35 29.71	7.81 29.56	8.23 31.15	8.65 32.74	9.24 34.97	9.77 36.98	10.31 39.02	10.84 41.02	11.48 43.45
20 1.4	7.40 28.00	7.96 30.12	8.49 32.13	9.01 34.10	9.50 35.95	9.98 37.77	10.67 40.38	11.28 42.69	11.91 45.08	12.51 47.35	13.26 40.19
25 1.7	8.28 31.34	8.90 33.68	9.49 35.91	10.08 38.15	10.62 40.19	11.16 42.24	11.92 45.11	12.61 47.72	13.31 50.38	13.99 52.95	14.82 56.09
30 2.1	9.07 34.32	9.75 36.90	10.39 39.32	11.04 41.78	11.64 44.05	12.23 46.29	13.06 49.43	13.81 52.27	14.58 55.19	15.33 58.02	16.23 61.43
40 2.8	10.47 36.62	11.26 42.62	12.00 45.42	12.75 48.25	13.44 50.87	14.12 53.44	15.08 57.07	15.95 60.37	16.84 63.74	17.70 66.99	18.75 70.97
50 3.4	11.71 44.32	12.59 47.65	13.42 50.79	14.25 53.93	15.02 56.85	15.79 59.76	16.86 63.81	17.83 67.48	18.81 71.20	19.79 74.90	20.96 79.33

NOZZLE #	#42	#43	#44	#45	#46	#47	#48	#49	#50
COLOR	Mustard	Mustard	Maroon	Maroon	Cream	Cream	Dark Blue	Dark Blue	Copper
DIAMOND
PSI BAR	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM	GPM LPM
6 0.4	7.60 28.76	7.96 30.13	8.33 31.52	8.73 33.04	9.12 34.51	9.58 36.26	9.96 37.69	10.31 39.02	10.77 40.76
10 0.7	9.81 37.13	10.28 38.91	10.75 40.68	11.27 42.66	11.77 44.54	12.36 46.78	12.86 48.67	13.31 50.38	13.91 52.64
15 1.0	12.01 45.45	12.59 47.65	13.17 19.84	13.80 52.23	14.41 54.54	15.14 57.30	15.75 59.61	16.30 61.70	17.03 64.45
20 1.4	13.87 52.49	14.54 55.03	15.20 57.53	15.93 60.30	16.64 62.98	17.49 66.20	18.19 68.84	18.82 71.23	19.67 74.45
25 1.7	15.51 58.70	16.25 61.51	17.00 64.34	17.81 67.41	18.61 70.43	19.55 74.00	20.33 79.94	21.05 79.67	21.99 83.23
30 2.1	16.99 64.30	17.80 67.37	18.62 70.47	19.51 73.85	20.38 77.13	21.42 81.07	22.28 84.32	23.05 87.24	24.09 91.18
40 2.8	19.61 74.22	20.56 77.82	21.50 81.37	22.53 85.28	23.54 89.09	24.73 93.60	25.72 97.35	26.62 100.76	27.82 105.29
50 3.4	21.93 83.00	22.98 86.98	24.04 90.99	25.19 95.34	26.31 99.58	27.65 104.66	28.76 108.85	29.76 112.64	31.10 117.71
